Main technical parameters and advantages of green enclosure

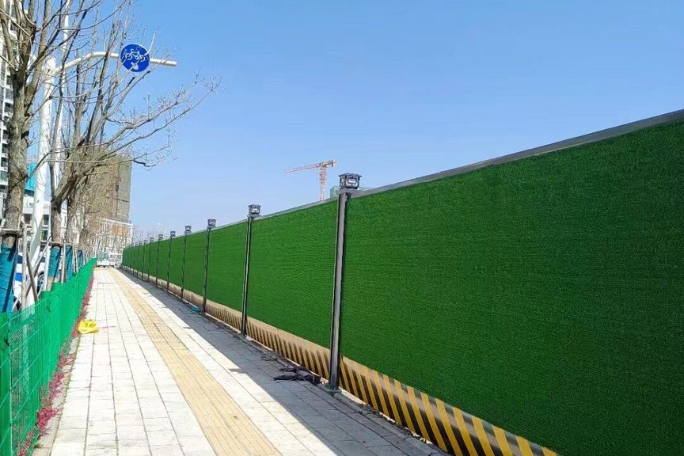

In recent years, with the continuous strengthening of domestic environmental protection concepts, green prefabricated enclosures have gradually become standard in construction projects. This type of construction enclosure can not only reflect the quality of a city, but also enable the smooth progress of engineering projects and protect the lives and property of the people. The following takes the XINLIAN green prefabricated enclosure as an example to briefly introduce its main technical parameters and advantages.

Main technical parameters of green prefabricated enclosure:

The base of green prefabricated enclosure is prefabricated reinforced concrete, 50cm wide, 40cm high and 114cm long; the outer side is painted with yellow and black warning paint, the black and yellow stripe is 20cm wide and the oblique angle is 60 degrees; the base and the base are connected through a pre-buried PVC pipe with a 3m long steel bar.

The columns of green prefabricated enclosure are made of 4mm thick channel steel with rolled edges, galvanized for anti-corrosion treatment, and red and white reflective film warning strips are pasted on the surface. The reflective film should be of national standard IV and above.

The top and ground trough are made of 4mm thick U-shaped steel.

The masonry material of green prefabricated enclosure is cement hollow brick, the strength grade is not less than MU10, and the cement mortar strength is not less than M7.5.

The diagonal brace adopts ∠50×4 mm angle steel, 1m wide and 1m high. The end of the angle steel is welded to the ∠60×5 mm angle steel, one end is welded to the column, and the other end is anchored to the cement floor or concrete foundation.

A 220v warning light and a lighting lamp should be installed on the top of the green prefabricated enclosure. The two are arranged at intervals, and the spacing is 6.9m. The lighting line should be equipped with a plastic sleeve to ensure that the metal frame is not electrified; the main line of the enclosure spray system is 50PPR pipe, the branch line is 32PPR pipe, and the nozzle is connected to 20PPR pipe, which adopts timed and fixed-point spraying.

Advantages of green prefabricated enclosure: fast construction, which can be assembled in one day; the prefabricated structure enclosure layout is flexible and can meet most construction environment requirements; it can be recycled many times, which can save enclosure costs and reduce the generation of construction waste, which is environmentally friendly; it has good wind and impact resistance and high safety performance; it can realize the industrialization and standardized production of enclosure structure, which is stable, beautiful and tidy.
